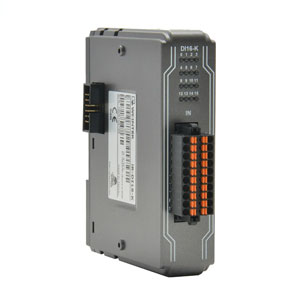

IR-DI16-K - Weintek Digital IO Module
IR-DI16-K Weintek Digital IO Module
| Brand | Weintek |
| Product Type | IO Module |
| Product | IR-DI16-K |
Weintek Digital IO Module IR-DI16-K Technical Specifications:
| Specification | Value |
|---|
| Number of Inputs | 16 |
| Input Logic | Sink or Source |
| Current Consumption | 83mA@5VDC |
| HIGH Level Input Voltage | 15~28VDC |
| LOW Level Input Voltage | 0~5VDC |
| Response Time (OFF->ON / ON->OFF) | 5 ms / 1 ms |
| Input Impedance | 5.6K Ω |
| End of Input State | Red led lit Input State |
| Isolation | Optical Isolation |
| PCB Coating | No |
| Enclosure | Plastic |
| Dimensions (W x H x D mm) | 27 x 109 x 81 mm |
| Mount | 35mm DIN rail mounting |
| Protection Structure | IP20 |
| Storage Temperature | -20° ~ 70°C |
| Operating Temperature | 0° ~ 55°C |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude (Air Pressure) | Below 3000 m |
| Weight | Approx. 0.12 kg |
