cMT-G04 - Weintek Communication Protocol Gateway

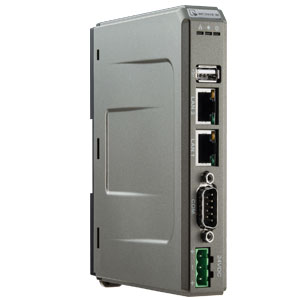

cMT-G04 Weintek Communication Protocol Gateway
| Brand | Weintek |
| Product Type | HMI |
| Product | cMT-G04 |
Weintek Communication Protocol Gateway cMT-G04 Technical Specifications:
| Specification | Value |
|---|
| Memory - Flash | 256 MB |
| Memory - RAM | 256 MB |
| Processor | Single core RISC |
| RTC | Built-in |
| Input Power | 10.5~28VDC |
| Power Isolation | Built-in |
| Voltage Resistance | 500VAC (1 min) |
| Isolation Resistance | Exceed 50MΩ at 500VDC |
| PCB Coating | Yes |
| Enclosure | Plastic |
| Dimensions W x H x D (mm) | 27 x 109 x 81 mm |
| Weight | Approx. 0.14 kg |
| Mount | 35 mm DIN rail mounting |
| Storage Temperature | -20° ~ 60°C |
| Operating Temperature | 0° ~ 50°C |
| Relative Humidity | 10% ~ 90% (non-condensing) |
| Altitude (Air Pressure) | Below 3000 m |
