Waycon LVDT | Waycon LVDT Position Sensor
Waycon LVDTs are displacement transducers used to measure linear position through contactless electromagnetic induction in industrial systems applications worldwide. They operate using a primary coil and symmetrically arranged secondary coils, where movement of a ferromagnetic core changes induced voltages proportionally, producing a continuous analog signal representing precise linear displacement without mechanical wear. Selection is based on measurement stroke, linearity, resolution, output signal type, excitation voltage, operating frequency, temperature range, environmental protection, mounting configuration, and compatibility with signal conditioning electronics used in control systems. Waycon LVDTs are inductive linear position sensing devices, cylindrical probe-based in structure, classified by measurement range and output format, interfacing through conditioned analog voltage or current signals for integration into standardized industrial automation, motion control, and monitoring architectures
Waycon LVDT: LV
Measurement Range: Options include 2 mm, 5 mm, 10 mm, 25 mm.
- Linearity: Maximum linearity deviation is ±0.1%.
- Resolution: Achieves a maximum resolution of 0.8 µm.
- Output Options: Analog outputs available in 4…20 mA or 0…10 V.
- Protection Class: Rated IP67 for dust and water resistance.
- Type Variations: Available with spring-loaded or guided rod, and with bellows or ball joint eyes for flexible mounting options.

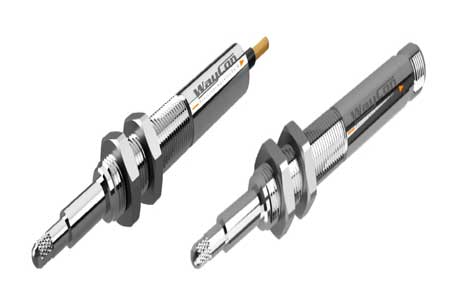

Waycon LVDT Position Sensor: LVIT
Measurement Range: 2 mm, 5 mm, 10 mm, 20 mm.
- Linearity: Maximum linearity deviation is ±0.35%.
- Output: Analog output of 0…10 V.
- Protection Class: Rated up to IP65 for dust and water resistance.
- Type: Features an external thread M12 with integrated electronics.

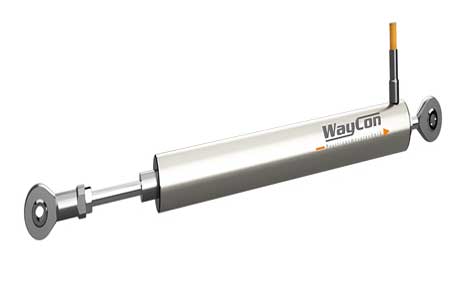

Waycon LVDT Sensor: LVIG
Measurement Range: Options available from 2 mm to 200 mm.
- Linearity: Maximum linearity error of ±0.35%.
- Output Options: Analog outputs in forms of 0…10 V and 4…20 mA.
- Protection Class: Offers a maximum rating of IP67.
- Type Features: Available with ball joint eyes, and options for integrated or external electronics.
LVDT Waycon: LVISM
Measurement Range: Available in 2 mm, 5 mm, and 10 mm.
- Linearity: Maximum linearity deviation of ±0.35%.
- Analog Output: Provides options of 0…10 V and 4…20 mA.
- Protection Class: Rated IP65 for dust and water resistance.
- Type: Features a miniature housing of ∅4 mm and a rod with an M2.5 thread.
At IndMALL Automation, we offer the Waycon LVDT series, known for its high precision and robust construction suitable for industrial environments. The Waycon LVDT models, such as LV, LVIT, LVIG, and LVISM, cover a wide range of measurement capabilities from 2 mm to 200 mm with resolutions up to 0.8 µm. These sensors provide accurate, reliable data across various outputs and protection classes up to IP67. They are designed with different configurations, including spring-loaded or guided rods, to meet specific application needs in industrial automation and position monitoring.
Frequently Asked Questions
What is the use of LVDT sensor?
An LVDT sensor is used to accurately measure linear displacement. It converts mechanical movement into an electrical signal that varies proportionally to the displacement. Commonly used in applications where precise and reliable position measurement is critical, LVDTs are found in sectors such as aerospace, industrial automation, and civil engineering to monitor structures, control systems, and more. They are valued for their high accuracy, reliability, and sensitivity to small changes in position.
What is the stroke length of a LVDT?
The stroke length of an LVDT (Linear Variable Differential Transformer) typically reaches up to ±150mm. This range allows it to provide a resolution of 40mV/mm, enabling precise measurement of displacement as it moves within this stroke length. Such capabilities make LVDTs highly effective for detailed and accurate position monitoring in various industrial applications.
What is the range of LVDT?
The range of an LVDT (Linear Variable Differential Transformer) can vary widely depending on the model, typically spanning from ±100 micrometers to ±25 centimeters. This allows for precise and versatile measurement capabilities across a broad spectrum of industrial applications, making LVDTs suitable for tasks requiring high accuracy in displacement measurement.
Request Quote for Waycon LVDT.
