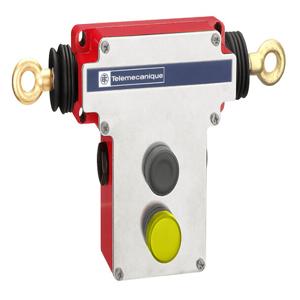

Telemecanique XY2CEDA196: Emergency Stop Rope Pull Switch
Technical Specifications of Telemecanique Emergency Push Button XY2CEDA196
| Product or component type | Dual emergency stop rope pull switch |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Body material | Zamak |
Telemecanique Emergency Stop Rope Pull Switch XY2CEDA196 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Emergency stop rope pull switches XY2C |
| Product or component type | Dual emergency stop rope pull switch |
| Device short name | XY2CED |
| Housing colour | Red RAL 3000 |
| Overvoltage category | Class I conforming to EN/IEC 61140 |
| Local signalling | With pilot light, yellow, 24...130 V |
| Body material | Zamak |
| Cover material | Stainless steel |
| Reset | By flush push-button |
| Contacts type and composition | 2 x (1 NC + 1 NO) |
| Contact operation | Slow-break |
| Trigger cable anchor point | RH and LH sides |
| Connections - terminals | Screw clamp terminal, 1 x 0.5...2 x 1.5 mmΒ² |
| Safety level | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data | B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Marking | CE |
| Positive opening | With conforming to EN/IEC 60947-5-1 |
| Resistance across terminals | 25 MOhm conforming to EN/IEC 60255-7 category 3 |
| Terminals description ISO nΒ°1 | (13-14)NO |
| Standards | Work equipment directive 2009/104/EC |
| Product certifications | UL category NISD emergency stop devices, CSA, CCC, EAC |
| Protective treatment | TC |
| Vibration resistance | 10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms conforming to EN/IEC 60068-2-27 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Compatibility code | XY2CED |
