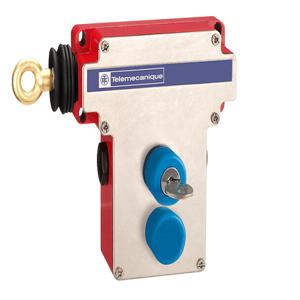

Telemecanique XY2CE2A396: Simple Stop Rope Pull Switch
Technical Specifications of Telemecanique Simple Stop Rope Pull Switch XY2CE2A396:
| Product or component type | Latching emergency stop rope pull switch |
| Housing colour | Red RAL 3000 |
| Compatibility code | XY2CE |
| Product certifications | UL category NISD emergency stop devices, CSA, CCC |
Telemecanique Simple Stop Rope Pull Switch XY2CE2A396 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Product or component type | Latching emergency stop rope pull switch |
| Device short name | XY2CE |
| Housing colour | Red RAL 3000 |
| Body material | Zamak |
| Compatibility code | XY2CE |
| Product certifications | UL category NISD emergency stop devices, CSA, CCC |
| Overvoltage category | Class I conforming to EN/IEC 61140, class I conforming to NF C 20-030 |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Slow-break |
| IP degree of protection | IP65 conforming to IEC 60529 |
| Local signalling | Without pilot light |
| Cover material | Stainless steel |
| Reset | By key-release push-button |
| Trigger cable anchor point | LH side |
| Connections - terminals | Screw clamp terminal, 1 x 0.5...2 x 1.5 mm² |
| Safety level | Can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1, can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data | B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Marking | CE |
| Positive opening | With conforming to EN/IEC 60947-5-1 |
| Resistance across terminals | 25 MOhm conforming to EN/IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A |
| Terminals description ISO n°1 | (13-14)NO |
| Standards | Work equipment directive 2009/104/EC |
| Protective treatment | TC |
| Vibration resistance | 10 gn (f= 10-300 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance | 50 gn 11 ms conforming to EN/IEC 60068-2-27 |
