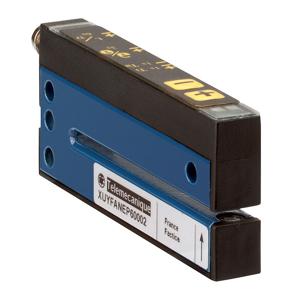

Telemecanique XUYFANEP60005: Photoelectric Sensors
Technical Specifications of Telemecanique Photoelectric Sensor XUYFANEP60005:
| Sensor Design | Fork |
| Detection System | Thru beam |
| Discrete Output Type | PNP and NPN |
| Electrical Connection | 1 male connector M8, 4 pins, 1 male connector M8, 4 pins, 1 male connector M8, 4 pins |
Telemecanique Photoelectric Sensors XUYFANEP60005 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | Application |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUY |
| Sensor design | Fork |
| Detection system | Thru beam |
| Material | Metal/plastic |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | PNP and NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M8, 4 pins, 1 male connector M8, 4 pins, 1 male connector M8, 4 pins |
| Product specific application | Detection of reference marks |
| Enclosure material | Painted aluminium and polyamide/glass |
| Type of output signal | Discrete |
| Output type | Solid state |
| Voltage drop | <2 V (closed state), <2 V (closed state) |
| Current consumption | 40 mA no-load |
| Vibration resistance | 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6, 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6, 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6, 7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) conforming to IEC 60068-2-27, 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Type of setting | - |
| Setting-up | Self teaching |
| Lens material | - |
| Accuracy | - |
| Label length | - |
| Distance between labels | - |
| Passing speed of object | - |
| Delay first up | - |
| Delay response | - |
| Delay recovery | - |
| Add on output | - |
| Time delay range | - |
| Cable composition | - |
| Keypad type | Yellow |
| Switching frequency | <= 10 kHz |
| Product certifications | CULus |
Please speak to our Technical Engineer for Photoelectric Sensors XUYFANEP60005 at attractive prices. Technical Specs Summary of XUYFANEP60005 includes Photo-electric sensor, Electronic sensor type for Application Series name applications at competitive prices. Featuring a Fork design and a reliable Thru beam detection system, this sensor ensures precise detection in automation environments. Built from Metal/plastic materials, it combines durability and lightweight performance, ideal for demanding industrial use. Operating with a DC supply circuit and a 4-wire wiring technique, it provides a PNP and NPN discrete output type and supports a 1 NO or 1 NC programmable discrete output function, offering versatility in integration with control systems. Encased in a robust Painted aluminium and polyamide/glass, this sensor is designed for durability in challenging environments. Specially engineered for Detection of reference marks, it outputs a Discrete signal with a Solid state output type. Match Your Needs with a Quote for your requirement of Photoelectric Sensors. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
