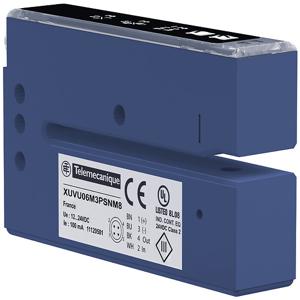

Telemecanique XUVU06M3NSNM8: Photoelectric Sensors
Technical Specifications of Telemecanique Photoelectric Sensor XUVU06M3NSNM8:
| Sensor Design | Fork |
| Detection System | Thru beam |
| Discrete Output Type | NPN |
| Electrical Connection | 1 male connector M8, 4 pins |
Telemecanique Photoelectric Sensors XUVU06M3NSNM8 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | Application packaging |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUV |
| Sensor design | Fork |
| Detection system | Thru beam |
| Material | Metal |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M8, 4 pins |
| Product specific application | Detection of transparent labels |
| Enclosure material | Zinc alloy |
| Type of output signal | Discrete |
| Output type | Solid state |
| Voltage drop | - |
| Current consumption | - |
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Type of setting | With |
| Setting-up | Numeric potentiometer |
| Lens material | PC |
| Accuracy | /- 0.20 mm at 120 m/min |
| Label length | 2.0000 MILLIMETER |
| Distance between labels | 2.0000 MILLIMETER |
| Passing speed of object | 180.0000 METER_PER_MINUTE |
| Delay first up | 30.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Delay recovery | - |
| Add on output | - |
| Time delay range | - |
| Cable composition | - |
| Keypad type | - |
| Switching frequency | - |
| Product certifications | - |
Ask for the Pricing of Photoelectric Sensors XUVU06M3NSNM8 at unbeatable prices. Detailed Specifications of XUVU06M3NSNM8 features Photo-electric sensor, Electronic sensor type for Application packaging Series name applications at competitive prices. Featuring a Fork design and a reliable Thru beam detection system, this sensor ensures precise detection in automation environments. Built from Metal materials, it combines durability and lightweight performance, ideal for demanding industrial use. Operating with a DC supply circuit and a 4-wire wiring technique, it provides a NPN discrete output type and supports a 1 NO or 1 NC programmable discrete output function, offering versatility in integration with control systems. Encased in a robust Zinc alloy, this sensor is designed for durability in challenging environments. Specially engineered for Detection of transparent labels, it outputs a Discrete signal with a Solid state output type. Now's the Time to Secure a Quote for your requirement of Photoelectric Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
