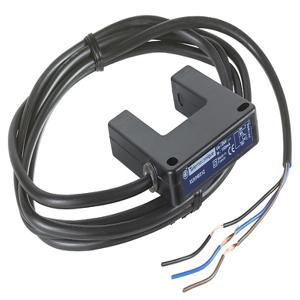

Telemecanique XUVH0312LD: Photoelectric Sensors

Technical Specifications of Telemecanique Photoelectric Sensor XUVH0312LD:

Sensor Design	Fork
Detection System	Thru beam
Discrete Output Type	PNP
Electrical Connection	Cable

Telemecanique Photoelectric Sensors XUVH0312LD Technical Specifications

Specification	Value
Range of product	Telemecanique Photoelectric sensors XU
Series name	Application material handling
Electronic sensor type	Photo-electric sensor
Sensor name	XUV
Sensor design	Fork
Detection system	Thru beam
Material	Plastic
Supply circuit type	DC
Wiring technique	3-wire
Discrete output type	PNP
Discrete output function	1 NO
Electrical connection	Cable
Product specific application	Static detection of passage of objects
Enclosure material	ABS/PC
Type of output signal	Discrete
Output type	Solid state
Voltage drop	<1.5 V (closed state)
Current consumption	<= 20 mA no-load
Vibration resistance	7 gn, amplitude = +/- 1 mm (f = 10-42 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Type of setting	-
Setting-up	Without sensitivity adjustment
Lens material	PMMA
Accuracy	-
Label length	-
Distance between labels	-
Passing speed of object	-
Delay first up	30.0000 MILLISECOND
Delay response	0.5 ms
Delay recovery	-
Add on output	-
Time delay range	-
Cable composition	-
Keypad type	-
Switching frequency	-
Product certifications	-

Mail Us for your needs in Photoelectric Sensors XUVH0312LD with budget-friendly prices. The Main Technical Parameters of XUVH0312LD include Photo-electric sensor, Electronic sensor type for Application material handling Series name applications at competitive prices. Featuring a Fork design and a reliable Thru beam detection system, this sensor ensures precise detection in automation environments. Built from Plastic materials, it combines durability and lightweight performance, ideal for demanding industrial use. Operating with a DC supply circuit and a 3-wire wiring technique, it provides a PNP discrete output type and supports a 1 NO discrete output function, offering versatility in integration with control systems. Encased in a robust ABS/PC, this sensor is designed for durability in challenging environments. Specially engineered for Static detection of passage of objects, it outputs a Discrete signal with a Solid state output type. Customize Your Experience with a Quote for your requirement of Photoelectric Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
