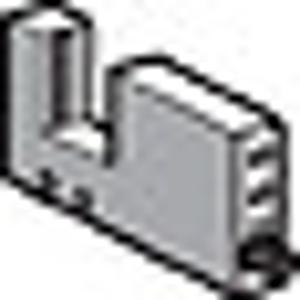

XUVF30M8 - Telemecanique Photoelectric Sensors
Technical Specifications of Telemecanique Photoelectric Sensors XUVF30M8 :
| Brand | Telemecanique |
| Product Type | Photoelectric Sensor |
| Model Number | XUVF30M8 |
Telemecanique Photoelectric Sensors XUVF30M8 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | Application material handling |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUV |
| Sensor design | Frame |
| Detection system | Thru beam |
| Material | Metal |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | PNP or NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M8, 4 pins |
| Product specific application | Dynamic detection of passage of objects |
| Enclosure material | Painted aluminium |
| Type of output signal | Discrete |
| Output type | Solid state |
| Voltage drop | <2 V (closed state) |
| Current consumption | <= 120 mA no-load |
| Vibration resistance | 25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Setting-up | Sensitivity adjustment with potentiometer |
| Lens material | Polycarbonate |
| Delay first up | 100.0000 MILLISECOND |
| Add on output | With alarm output |
| Time delay range | 0...5 s off-delay delay |
IndMALL Automation Dealing offers Telemecanique Photoelectric Sensors XUVF30M8 at unbeatable prices. The Main Technical Parameters of XUVF30M8 are Photo-electric sensor, Electronic sensor type for Application material handling Series name applications at competitive prices. Featuring a Frame design and a reliable Thru beam detection system, this sensor ensures precise detection in automation environments. Built from Metal materials, it combines durability and lightweight performance, ideal for demanding industrial use. Operating with a DC supply circuit and a 4-wire wiring technique, it provides a PNP or NPN discrete output type and supports a 1 NO or 1 NC programmable discrete output function, offering versatility in integration with control systems. Encased in a robust Painted aluminium, this sensor is designed for durability in challenging environments. Specially engineered for Dynamic detection of passage of objects, it outputs a Discrete signal with a Solid state output type. Take the First Step with a Quote for your requirement of Telemecanique Photoelectric Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
