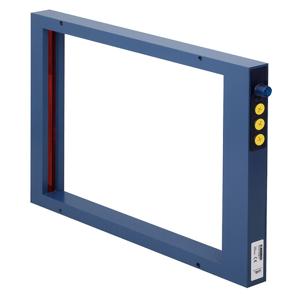

XUVF250M12 - Telemecanique Photoelectric Sensors
Technical Specifications of Telemecanique Photoelectric Sensors XUVF250M12 :
| Brand | Telemecanique |
| Product Type | Photoelectric Sensor |
| Model Number | XUVF250M12 |
Telemecanique Photoelectric Sensors XUVF250M12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | Application material handling |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUV |
| Sensor design | Frame |
| Detection system | Thru beam |
| Material | Metal |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | PNP or NPN |
| Discrete output function | 1 NO or 1 NC programmable |
| Electrical connection | 1 male connector M12, 4 pins |
| Product specific application | Static detection of passage of objects |
| Enclosure material | Painted aluminium |
| Type of output signal | Discrete |
| Output type | Solid state |
| Voltage drop | <2 V (closed state) |
| Current consumption | <= 150 mA no-load |
| Vibration resistance | 25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Setting-up | Sensitivity adjustment with potentiometer |
| Lens material | Altuglass |
| Delay first up | 100.0000 MILLISECOND |
| Add on output | With alarm output |
| Time delay range | 0...5 s off-delay delay |
Send Your Inquiry for Telemecanique Photoelectric Sensors XUVF250M12 with cost-effective solutions. Essential Technical Specs of XUVF250M12 are Photo-electric sensor, Electronic sensor type for Application material handling Series name applications at competitive prices. Featuring a Frame design and a reliable Thru beam detection system, this sensor ensures precise detection in automation environments. Built from Metal materials, it combines durability and lightweight performance, ideal for demanding industrial use. Operating with a DC supply circuit and a 4-wire wiring technique, it provides a PNP or NPN discrete output type and supports a 1 NO or 1 NC programmable discrete output function, offering versatility in integration with control systems. Encased in a robust Painted aluminium, this sensor is designed for durability in challenging environments. Specially engineered for Static detection of passage of objects, it outputs a Discrete signal with a Solid state output type. Capture the Best Deal with a Quote for your requirement of Telemecanique Photoelectric Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
