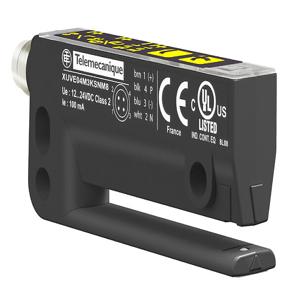

Telemecanique XUVE04M3KSNM8: Photoelectric Sensors
Technical Specifications of Telemecanique Photoelectric Sensor XUVE04M3KSNM8:
| Sensor Design | Fork |
| Detection System | Thru beam |
| Discrete Output Type | PNP and NPN |
| Electrical Connection | 1 male connector M8, 4 pins |
Telemecanique Photoelectric Sensors XUVE04M3KSNM8 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Photoelectric sensors XU |
| Series name | Application packaging |
| Electronic sensor type | Photo-electric sensor |
| Sensor name | XUV |
| Sensor design | Fork |
| Detection system | Thru beam |
| Material | PA (polyamide) 12 |
| Supply circuit type | DC |
| Wiring technique | 4-wire |
| Discrete output type | PNP and NPN |
| Discrete output function | 2 NO/NC programmable |
| Electrical connection | 1 male connector M8, 4 pins |
| Product specific application | Detection of labels |
| Enclosure material | Polyamide |
| Type of output signal | Discrete |
| Output type | Solid state |
| Voltage drop | - |
| Current consumption | - |
| Vibration resistance | 7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Type of setting | Without |
| Setting-up | Numeric potentiometer |
| Lens material | PC |
| Accuracy | /-0.05 mm at 150 m/min |
| Label length | 2.0000 MILLIMETER |
| Distance between labels | 2.0000 MILLIMETER |
| Passing speed of object | 200.0000 METER_PER_MINUTE |
| Delay first up | 30.0000 MILLISECOND |
| Delay response | 0.1000 MILLISECOND |
| Delay recovery | - |
| Add on output | - |
| Time delay range | - |
| Cable composition | - |
| Keypad type | - |
| Switching frequency | - |
| Product certifications | - |
Mail Us for your needs in Photoelectric Sensors XUVE04M3KSNM8 with budget-friendly prices. The Main Technical Parameters of XUVE04M3KSNM8 include Photo-electric sensor, Electronic sensor type for Application packaging Series name applications at competitive prices. Featuring a Fork design and a reliable Thru beam detection system, this sensor ensures precise detection in automation environments. Built from PA (polyamide) 12 materials, it combines durability and lightweight performance, ideal for demanding industrial use. Operating with a DC supply circuit and a 4-wire wiring technique, it provides a PNP and NPN discrete output type and supports a 2 NO/NC programmable discrete output function, offering versatility in integration with control systems. Encased in a robust Polyamide, this sensor is designed for durability in challenging environments. Specially engineered for Detection of labels, it outputs a Discrete signal with a Solid state output type. Customize Your Experience with a Quote for your requirement of Photoelectric Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
