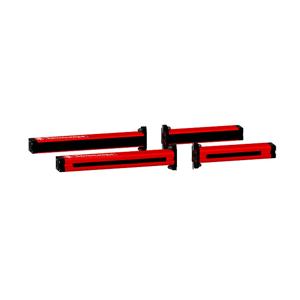

Telemecanique XUSZAST2XT: Safety Light Curtain Muting Application
Technical Specifications of Telemecanique Safety Light Curtain Muting Application XUSZAST2XT:
| Product or component type | Single-beam prebuilt muting arms |
| Safety reliability data | PFHd = 2.73E-7 1/h |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Response time | < 100 ms |
Telemecanique Safety Light Curtain Muting Application XUSZAST2XT Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Safety light curtains XUSL |
| Product or component type | Single-beam prebuilt muting arms |
| Safety reliability data | PFHd = 2.73E-7 1/h |
| Output type | 2 discrete solid-state PNP (NO) |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Local signalling | 2 yellow LED receiver |
| Product certifications | CE |
| IP degree of protection | IP65 |
| Device short name | XUSZAS |
| Product specific application | Conveyor system entry/exit direction, conveyor system normal speed |
| Detection system | Through beam |
| Response time | < 100 ms |
| Kit composition | transmitter + receiver, quick start guide |
| Emission | IR LED |
| Supply | Via connector |
| Current consumption | 42 mA |
| Output voltage | 24 V |
| Output circuit type | DC |
| Voltage drop | <0.5 V |
| Housing colour | Red RAL 3000 |
| Directives | 98/37/EEC - machinery |
| Shock resistance | 10 gn for 16 ms conforming to IEC 61496-1 |
| Vibration resistance | 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Product compatibility | XUSL4M |
| Specific application of photoelectric detector | Detection of opaque parts |
| Switching capacity in mA | 100 mA |
