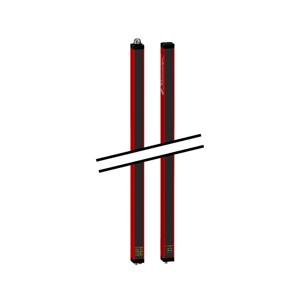

Telemecanique XUSL4MA30H121N: Safety Light Curtain Muting Application
Technical Specifications of Telemecanique Safety Light Curtain Muting Application XUSL4MA30H121N:
| Product or component type | Safety light curtain type 4 |
| Safety reliability data | PFHd = 2.50E-8 1/h conforming to IEC 61508 |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Response time | 17.6 ms |
Telemecanique Safety Light Curtain Muting Application XUSL4MA30H121N Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Product or component type | Safety light curtain type 4 |
| Safety level | Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1 |
| Safety reliability data | PFHd = 2.50E-8 1/h conforming to IEC 61508 |
| Output type | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Local signalling | 1 multi-colour LED transmitter, 10 dual colour LEDs receiver |
| Product certifications | CULus |
| IP degree of protection | IP65, IP67 |
| Device short name | XUSL4M |
| Product specific application | For hand protection |
| Type of start | Manual |
| Control type | Selected by wiring |
| Detection system | Transmitter-receiver system |
| Response time | 17.6 ms |
| Kit composition | adjustable mounting bracket(s), 1 receiver, 1 transmitter, 1 user guide with certificate of conformity on CD-ROM |
| Emission | IR LED 950 nm |
| Supply | Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1 |
| Current consumption | 35 mA no-load transmitter, 85 mA no-load receiver, 900 mA with maximum load receiver |
| Output voltage | 24 V |
| Output circuit type | DC |
| Voltage drop | <0.5 V |
| Electrical connection | 1 male connector M12 5 pins transmitter, 2 female connectors M12 5 pins transmitter, 1 male connector M12 12 pins receiver, 3 female connectors M12 5 pins receiver |
| Function available | Test, muting, LED display of operating modes and faults |
| Material | Aluminium: casing, polycarbonate: front panel, polypropylene: end caps |
| Housing colour | Red RAL 3000 |
| Fixing mode | By fixing brackets |
| Offer type | Standard distance |
| Directives | 98/37/EEC - machinery |
| Environmental characteristic | Resistance to light disturbance conforming to EN/IEC 61496-2 |
| Shock resistance | 10 gn for 16 ms conforming to IEC 61496-1 |
| Vibration resistance | 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
