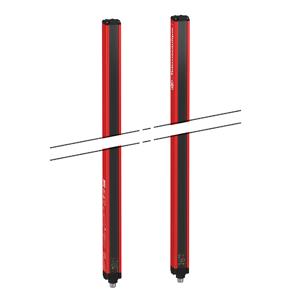

Telemecanique XUSL4E30H046NS1: Safety light curtain type 4
Technical Specifications of Telemecanique Safety Light Curtain XUSL4E30H046NS1:
| Product or component type | Safety light curtain type 4 |
| Output type | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| Output voltage | 24 V |
| Product specific application | For hand protection |
Telemecanique Safety light curtain type 4 XUSL4E30H046NS1 Technical Specifications
| Specification | Value |
|---|---|
| Product or component type | Safety light curtain type 4 |
| Device short name | XUSL4E |
| Output type | 2 safety outputs OSSD solid-state PNP (arc suppression) |
| Detection system | Transmitter-receiver system |
| [Us] rated supply voltage | 24 V DC +/- 20 % |
| Current consumption | 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver |
| Electrical connection | 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver |
| Switching capacity in mA | - |
| Marking | CE |
| Material | Aluminium: casing, polycarbonate: front panel, polypropylene: end caps |
| Function available | Test, muting through external safety module XPSLCMUT1160, LED display of operating modes and faults |
| Standards | - |
| Safety level | Type 4 conforming to IEC 61496-1, SIL 3 conforming to IEC 61508, SILCL 3 conforming to IEC 62061, category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1 |
| IP degree of protection | IP65, IP67 |
| Shock resistance | 10 gn for 16 ms conforming to IEC 61496-1 |
| Vibration resistance | 0.35 +/- 0.05 mm (f= 10-55 Hz) conforming to IEC 61496-1 |
| Range of product | - |
| Product specific application | For hand protection |
| Type of start | Manual |
| Control type | Selected by wiring |
| Response time | - |
| Kit composition | adjustable mounting bracket(s), 1 receiver(s), 1 transmitter(s), 1 user guide with certificate of conformity on CD-ROM |
| Emission | IR LED 950 nm |
| Supply | Power supply conforming to IEC 61496-1, power supply conforming to IEC 60204-1 |
| Output voltage | 24 V |
| Output circuit type | DC |
| Voltage drop | <0.5 V |
| Local signalling | 1 multi-colour LED transmitter, 2 dual colour LEDs receiver |
| Housing colour | Red RAL 3000 |
| Fixing mode | By fixing brackets |
| Offer type | Standard distance |
| Directives | 98/37/EEC - machinery |
| Product certifications | CULus |
| Environmental characteristic | Resistance to light disturbance conforming to EN/IEC 61496-2 |
| Safety reliability data | PFHd = 9.47E-9 1/h conforming to IEC 61508 |
| Topology | Daisy chain slave1 |
Send Your Inquiry for Safety light curtain type 4 XUSL4E30H046NS1 with cost-effective solutions. Essential Technical Specs of XUSL4E30H046NS1 are Safety light curtain type 4 features 2 safety outputs OSSD solid-state PNP (arc suppression) Output type, ensuring reliable protection in hazardous environments. Utilizing a Transmitter-receiver system, it operates efficiently with an 24 V DC +/- 20 % rated supply voltage. The current consumption is optimized at 42 mA no-load transmitter, 83 mA no-load receiver, 42 mA transmitter, 900 mA with maximum load receiver. Connectivity is streamlined through 1 male connector M12 5 pins transmitter, 1 male connector M12 8 pins receiver connector, ensuring secure and robust installation. Certified to CULus standards, this device provides an IP65, IP67-rated enclosure, offering protection against harsh environments. With an 24 V DC output voltage and reliable DC output circuit, the XUSL4E delivers performance and safety. Capture the Best Deal with a Quote for your requirement of Safety light curtain type 4. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
