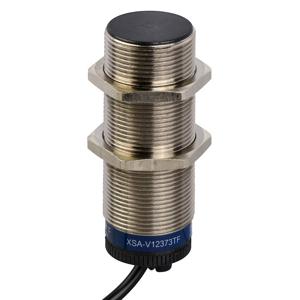

XSAV11801: Telemecanique AC/DC Inductive Sensors
Technical Specifications of Telemecanique AC/DC Inductive Sensors XSAV11801:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Cable |
Telemecanique AC/DC Inductive Sensors XSAV11801 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XSA |
| Sensor design | Cylindrical M30 |
| Size | 81 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NC |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | - |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24...210 V DC, 24...240 V AC 50/60 Hz |
| Output circuit type | AC DC |
| Switching capacity in mA | 5...200 mA DC, 5...350 mA AC |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 3 15 PT OF FR |
| Cable composition | 2 X 0 34 mm2 |
| Status LED | Output state: 1 LED (red) |
| Wire insulation material | PVC |
| Switching frequency | <= 100 Hz |
| Voltage drop | <5.7 V (closed) |
| Current consumption | - |
| Delay first up | - |
| Delay response | - |
| Marking | CE |
| Delay recovery | - |
| Product certifications | CCC CSA UL |
| Vibration resistance | - |
| Shock resistance | - |
| Thread type | M30 X 1 5 |
IndMALL Automation Dealing offers Telemecanique AC/DC Inductive Sensors XSAV11801 at unbeatable prices. The Main Technical Parameters of XSAV11801 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NC output, designed for efficient and reliable performance in automation tasks. Rated for 24...210 V DC, 24...240 V AC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA DC, 5...350 mA AC, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 100 Hz. Take the First Step with a Quote for your requirement of Telemecanique AC/DC Inductive Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
