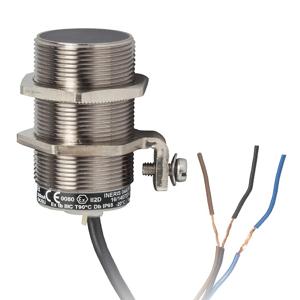

XSAV11373EX: Telemecanique M30, 30 mm Length, 3 wire Proximity Sensors
Technical Specifications of Telemecanique M30, 30 mm Length, 3 wire Proximity Sensors XSAV11373EX:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique M30, 30 mm Length, 3 wire Proximity Sensors XSAV11373EX Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XSA |
| Sensor design | Cylindrical M30 |
| Size | 30 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NC |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 3 15 PT OF FR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Output state: 1 LED (red) |
| Wire insulation material | PVC |
| Switching frequency | <= 100 Hz |
| Voltage drop | <1.8 V (closed state) |
| Current consumption | 0...15 mA no-load |
| Delay first up | - |
| Delay response | - |
| Marking | II2 D EX TB T90 D C DB IP67 |
| Delay recovery | - |
| Product certifications | IEC EX INE 17 0006 INERIS 04ATEX0022 |
| Vibration resistance | - |
| Shock resistance | - |
| Thread type | M30 X 1 5 |
Call us for Telemecanique M30, 30 mm Length, 3 wire Proximity Sensors XSAV11373EX at the lowest pricing. In-depth Technical Analysis of XSAV11373EX feature INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NC and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...48 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 100 Hz. Capture the Best Deal with a Quote for your requirement of Telemecanique M30, 30 mm Length, 3 wire Proximity Sensors. Our promise: More affordable pricing and more personalized support than other Dealers.
