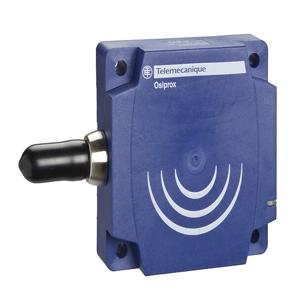

XS9D111A2M12: Telemecanique 80 x 80 x 26, 26 mm Length, Fixed Proximity Sensors
Technical Specifications of Telemecanique 80 x 80 x 26, 26 mm Length, Fixed Proximity Sensors XS9D111A2M12:
| Sensor Design | Flat Form 80 X 80 X 26 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Male connector M12, 4 pins |
Telemecanique 80 x 80 x 26, 26 mm Length, Fixed Proximity Sensors XS9D111A2M12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS9 |
| Sensor design | Flat Form 80 X 80 X 26 |
| Size | 26 mm |
| Body type | Fixed |
| Type of output signal | ANALOGUE |
| Wiring technique | 2 Wire |
| Discrete output function | - |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | - |
| Material | Plastic |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 24 V DC |
| Output circuit type | DC |
| Switching capacity in mA | - |
| IP degree of protection | IP67 double insulation conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | - |
| Cable composition | - |
| Status LED | Without |
| Wire insulation material | - |
| Switching frequency | <= 100 Hz |
| Voltage drop | - |
| Current consumption | 0...4 mA no-load |
| Delay first up | - |
| Delay response | - |
| Marking | CE |
| Delay recovery | - |
| Product certifications | CSA ECOLAB UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
Obtain a Quote for Telemecanique 80 x 80 x 26, 26 mm Length, Fixed Proximity Sensors XS9D111A2M12 at economical prices. Specifications Overview for XS9D111A2M12 reveals INDUCTIVE PROXIMITY SENSOR, featuring an Flat Form 80 X 80 X 26 design. This sensor operates with an ANALOGUE Type of output signal, designed for efficient and reliable performance in automation tasks. Rated for 24 V DC, ensuring durability in varying power conditions it promises safe and stable operation. Its IP67 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 100 Hz. Take the First Step with a Quote for your requirement of Telemecanique 80 x 80 x 26, 26 mm Length, Fixed Proximity Sensors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
