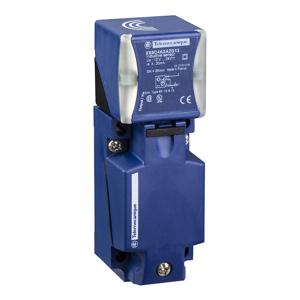

XS9C4A2A2G13: Telemecanique 40 x 40 x 117, 117 mm Length, 5 positions turret head Proximity Sensors
Technical Specifications of Telemecanique 40 x 40 x 117, 117 mm Length, 5 positions turret head Proximity Sensors XS9C4A2A2G13:
| Sensor Design | Form 40 X 40 X 117 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Screw-clamp terminals, 4 x 1.5 mmΒ² |
Telemecanique 40 x 40 x 117, 117 mm Length, 5 positions turret head Proximity Sensors XS9C4A2A2G13 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS9 |
| Sensor design | Form 40 X 40 X 117 |
| Size | 117 mm |
| Body type | Fixed |
| Type of output signal | ANALOGUE |
| Wiring technique | 2 Wire |
| Discrete output function | - |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | - |
| Material | Plastic |
| Electrical connection | Screw-clamp terminals, 4 x 1.5 mmΒ² |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | - |
| IP degree of protection | IP67 conForming to IEC 60529, IP65 conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | PBT |
| Detection face | 5 Positions Turret Head |
| Front material | PBT |
| Differential travel | - |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | - |
| Voltage drop | - |
| Current consumption | 0...4 mA no-load |
| Delay first up | 7.5000 MILLISECOND |
| Delay response | 6.0000 MILLISECOND |
| Marking | CE |
| Delay recovery | 6.0000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
IndMALL Automation Dealing offers Telemecanique 40 x 40 x 117, 117 mm Length, 5 positions turret head Proximity Sensors XS9C4A2A2G13 at unbeatable prices. The Main Technical Parameters of XS9C4A2A2G13 are INDUCTIVE PROXIMITY SENSOR, featuring an Form 40 X 40 X 117 design. This sensor operates with an ANALOGUE Type of output signal, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP65 conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an 5 Positions Turret Head detection face and can operate. Take the First Step with a Quote for your requirement of Telemecanique 40 x 40 x 117, 117 mm Length, 5 positions turret head Proximity Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
