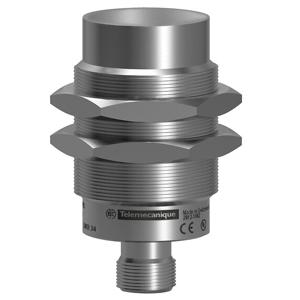

XS930S4PAM12: Telemecanique M30, 64 mm Length Proximity Sensors
Technical Specifications of Telemecanique M30, 64 mm Length Proximity Sensors XS930S4PAM12:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M12, 4 pins |
Telemecanique M30, 64 mm Length Proximity Sensors XS930S4PAM12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS9 |
| Sensor design | Cylindrical M30 |
| Size | 64 mm |
| Body type | SINGLE PIECE BODY |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Stainless Steel 316L |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 conForming to IEC 60529, IP69K |
| Enclosure material | Stainless Steel 316L |
| Detection face | Frontal |
| Front material | Stainless Steel 316L |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 90 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 40.0000 MILLISECOND |
| Delay response | 0.0001 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.0150 MILLISECOND |
| Product certifications | CULUS ECOLAB |
| Vibration resistance | 25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M30 X 1 5 |
Reach Us by Email for Telemecanique M30, 64 mm Length Proximity Sensors XS930S4PAM12 at Discounted Rates. Key Technical Features of XS930S4PAM12 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP68 conForming to IEC 60529,
IP69K, IP degree of protection makes it suitable for challenging environments. Built from durable Stainless Steel 316L, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 90 Hz. Navigate Your Needs with a Quote for your requirement of Telemecanique M30, 64 mm Length Proximity Sensors. Our pricing and support are unrivaled, especially when compared to other Competitors.
