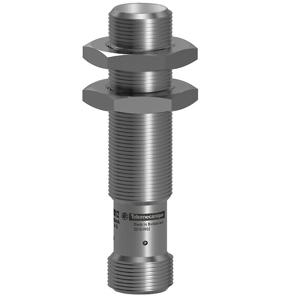

XS912R1PAM12: Telemecanique XS9 Series Inductive Sensors
Technical Specifications of Telemecanique XS9 Series Inductive Sensors XS912R1PAM12:
| Sensor Design | Cylindrical M12 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M12, 4 pins |
Telemecanique XS9 Series Inductive Sensors XS912R1PAM12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS9 |
| Sensor design | Cylindrical M12 |
| Size | 60 mm |
| Body type | SINGLE PIECE BODY |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Stainless Steel 303 |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP69K conForming to DIN 40050, IP68 conForming to IEC 60529 |
| Enclosure material | Stainless Steel 303 |
| Detection face | Frontal |
| Front material | Stainless Steel 303 |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 600 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 40.0000 MILLISECOND |
| Delay response | 0.0001 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.0150 MILLISECOND |
| Product certifications | CULUS |
| Vibration resistance | 25 gn amplitude = +/- 1 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 30 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M12 X 1 |
IndMALL Automation Dealing offers Telemecanique XS9 Series Inductive Sensors XS912R1PAM12 at attractive prices. Key Technical Features of XS912R1PAM12 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M12 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP69K conForming to DIN 40050, IP68 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Stainless Steel 303, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 600 Hz. Navigate Your Needs with a Quote for your requirement of Telemecanique XS9 Series Inductive Sensors. We excel in offering more cost-effective and supportive solutions than other Competitors.
