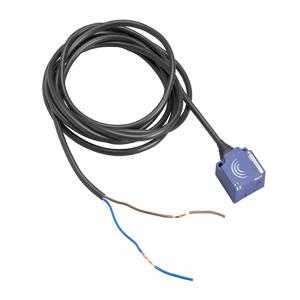

XS8E1A1MAL2 - Telemecanique XS8 Series, 26 x 26 x 13, 13 mm Length Inductive Sensors
Technical Specifications of Telemecanique XS8 Series, 26 x 26 x 13, 13 mm Length Inductive Sensors XS8E1A1MAL2 :
| Brand | Telemecanique |
| Product Type | Proximity Sensor |
| Model Number | XS8E1A1MAL2 |
Telemecanique XS8 Series, 26 x 26 x 13, 13 mm Length Inductive Sensors XS8E1A1MAL2 Technical Specifications
| Specification | Value |
|---|---|
| Series name | General Purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS8 |
| Sensor design | Flat Form 26 X 26 X 13 |
| Size | 13 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Material | Plastic |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Output circuit type | AC DC |
| Switching capacity in mA | 5...200 mA AC/DC |
| IP degree of protection | IP68 double insulation conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 2 X 0 34 mm2 |
| Wire insulation material | PVC |
| Switching frequency | <= 2000 Hz |
| Voltage drop | <5.5 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.8000 MILLISECOND |
| Product certifications | CCC CSA ECOLAB UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
Get A Quote for Telemecanique XS8 Series, 26 x 26 x 13, 13 mm Length Inductive Sensors XS8E1A1MAL2 at the best price. Here are the brief Technical Specifications of XS8E1A1MAL2 are Inductive proximity sensor, featuring an Flat Form 26 X 26 X 13 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...240 V AC/DC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA AC/DC, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2000 Hz. It's Time to get a Quote for your requirement of Telemecanique XS8 Series, 26 x 26 x 13, 13 mm Length Inductive Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
