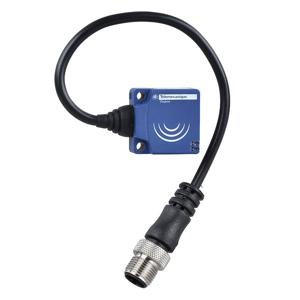

XS8E1A1MAL01U20: Telemecanique 26 x 26 x 13, 13 mm Length, AC DC Proximity Sensors
Technical Specifications of Telemecanique 26 x 26 x 13, 13 mm Length, AC DC Proximity Sensors XS8E1A1MAL01U20:
| Sensor Design | Flat Form 26 X 26 X 13 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Remote male connector 1/2"20 UNF, 3 pins |
Telemecanique 26 x 26 x 13, 13 mm Length, AC DC Proximity Sensors XS8E1A1MAL01U20 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS8 |
| Sensor design | Flat Form 26 X 26 X 13 |
| Size | 13 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | - |
| Material | Plastic |
| Electrical connection | Remote male connector 1/2"20 UNF, 3 pins |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Output circuit type | AC DC |
| Switching capacity in mA | 5...200 mA AC/DC |
| IP degree of protection | IP67 double insulation conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | - |
| Wire insulation material | PVC |
| Switching frequency | <= 2000 Hz |
| Voltage drop | <5.5 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.8000 MILLISECOND |
| Product certifications | CCC CSA ECOLAB UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
IndMALL Automation Dealing offers Telemecanique 26 x 26 x 13, 13 mm Length, AC DC Proximity Sensors XS8E1A1MAL01U20 at unbeatable prices. The Main Technical Parameters of XS8E1A1MAL01U20 are INDUCTIVE PROXIMITY SENSOR, featuring an Flat Form 26 X 26 X 13 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...240 V AC/DC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA AC/DC, it promises safe and stable operation. Its IP67 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2000 Hz. Take the First Step with a Quote for your requirement of Telemecanique 26 x 26 x 13, 13 mm Length, AC DC Proximity Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
