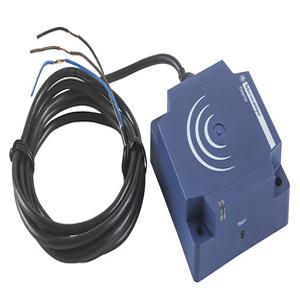

XS8D1A1PAM12: Telemecanique 80 x 80 x 26, 26 mm Length, 1 NO Proximity Sensors
Technical Specifications of Telemecanique 80 x 80 x 26, 26 mm Length, 1 NO Proximity Sensors XS8D1A1PAM12:
| Sensor Design | Flat Form 80 X 80 X 26 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M12, 4 pins |
Telemecanique 80 x 80 x 26, 26 mm Length, 1 NO Proximity Sensors XS8D1A1PAM12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS8 |
| Sensor design | Flat Form 80 X 80 X 26 |
| Size | 26 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 double insulation conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | - |
| Wire insulation material | - |
| Switching frequency | <= 150 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 6.0000 MILLISECOND |
| Product certifications | CSA ECOLAB UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
Mail Us for Telemecanique 80 x 80 x 26, 26 mm Length, 1 NO Proximity Sensors XS8D1A1PAM12 at unbeatable prices. Detailed Specifications of XS8D1A1PAM12 feature INDUCTIVE PROXIMITY SENSOR, featuring an Flat Form 80 X 80 X 26 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP67 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 150 Hz. Elevate Your Project with a Quote for your requirement of Telemecanique 80 x 80 x 26, 26 mm Length, 1 NO Proximity Sensors. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
