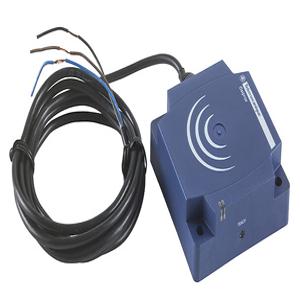

XS8D1A1MAU20: Telemecanique 80 x 80 x 26, 26 mm Length, 2 wire Inductive Sensors
Technical Specifications of Telemecanique 80 x 80 x 26, 26 mm Length, 2 wire Inductive Sensors XS8D1A1MAU20:
| Sensor Design | Flat Form 80 X 80 X 26 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Male connector 1/2"20 UNF, 3 pins |
Telemecanique 80 x 80 x 26, 26 mm Length, 2 wire Inductive Sensors XS8D1A1MAU20 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS8 |
| Sensor design | Flat Form 80 X 80 X 26 |
| Size | 26 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | - |
| Material | Plastic |
| Electrical connection | Male connector 1/2"20 UNF, 3 pins |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Output circuit type | AC DC |
| Switching capacity in mA | 5...200 mA DC, 5...300 mA AC |
| IP degree of protection | IP67 double insulation conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | - |
| Wire insulation material | - |
| Switching frequency | <= 150 Hz |
| Voltage drop | <5.5 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 15.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 6.0000 MILLISECOND |
| Product certifications | CCC CSA ECOLAB UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
Give Us a Call for Telemecanique 80 x 80 x 26, 26 mm Length, 2 wire Inductive Sensors XS8D1A1MAU20 at the lowest pricing. In-depth Technical Analysis of XS8D1A1MAU20 feature INDUCTIVE PROXIMITY SENSOR, featuring an Flat Form 80 X 80 X 26 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...240 V AC/DC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA DC, 5...300 mA AC, it promises safe and stable operation. Its IP67 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 150 Hz. Elevate Your Project with a Quote for your requirement of Telemecanique 80 x 80 x 26, 26 mm Length, 2 wire Inductive Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
