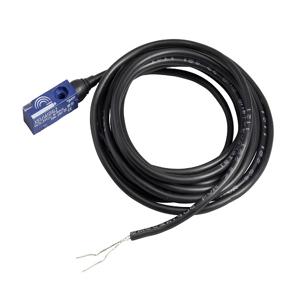

XS7J1A1PBL2: Telemecanique Fixed Inductive Sensors
Technical Specifications of Telemecanique Fixed Inductive Sensors XS7J1A1PBL2:
| Sensor Design | Flat Form 8 X 22 X 8 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique Fixed Inductive Sensors XS7J1A1PBL2 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS7 |
| Sensor design | Flat Form 8 X 22 X 8 |
| Size | 8 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NC |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 11 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 2000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 5.0000 MILLISECOND |
| Delay response | 0.1000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.1000 MILLISECOND |
| Product certifications | CSA C TICK UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
Mail Us for Telemecanique Fixed Inductive Sensors XS7J1A1PBL2 at unbeatable prices. Detailed Specifications of XS7J1A1PBL2 feature INDUCTIVE PROXIMITY SENSOR, featuring an Flat Form 8 X 22 X 8 design. This sensor operates with an Discrete Type of output signal, 1 NC and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 100 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2000 Hz. Elevate Your Project with a Quote for your requirement of Telemecanique Fixed Inductive Sensors. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
