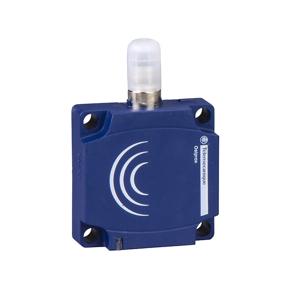

XS7C1A1PAM8: Telemecanique 40 x 40 x 15, 15 mm Length, Plastic Proximity Sensors
Technical Specifications of Telemecanique 40 x 40 x 15, 15 mm Length, Plastic Proximity Sensors XS7C1A1PAM8:
| Sensor Design | Flat Form 40 X 40 X 15 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M8, 3 pins |
Telemecanique 40 x 40 x 15, 15 mm Length, Plastic Proximity Sensors XS7C1A1PAM8 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS7 |
| Sensor design | Flat Form 40 X 40 X 15 |
| Size | 15 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | Male connector M8, 3 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 2.0000 MILLISECOND |
| Marking | CE |
| Delay recovery | 5.0000 MILLISECOND |
| Product certifications | CSA C TICK ECOLAB UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
Obtain a Quote for Telemecanique 40 x 40 x 15, 15 mm Length, Plastic Proximity Sensors XS7C1A1PAM8 at economical prices. Specifications Overview for XS7C1A1PAM8 reveals INDUCTIVE PROXIMITY SENSOR, featuring an Flat Form 40 X 40 X 15 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 100 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz. Take the First Step with a Quote for your requirement of Telemecanique 40 x 40 x 15, 15 mm Length, Plastic Proximity Sensors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
