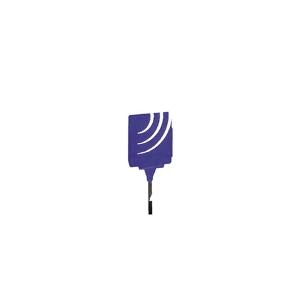

XS7C1A1PAL5: Telemecanique 40 x 40 x 15, 15 mm Length, PNP Proximity Sensors
Technical Specifications of Telemecanique 40 x 40 x 15, 15 mm Length, PNP Proximity Sensors XS7C1A1PAL5:
| Sensor Design | Flat Form 40 X 40 X 15 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique 40 x 40 x 15, 15 mm Length, PNP Proximity Sensors XS7C1A1PAL5 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS7 |
| Sensor design | Flat Form 40 X 40 X 15 |
| Size | 15 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 2.0000 MILLISECOND |
| Marking | CE |
| Delay recovery | 5.0000 MILLISECOND |
| Product certifications | CSA C TICK UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
Mail Us for your needs in Telemecanique 40 x 40 x 15, 15 mm Length, PNP Proximity Sensors XS7C1A1PAL5 with budget-friendly prices. The Main Technical Parameters of XS7C1A1PAL5 include INDUCTIVE PROXIMITY SENSOR, featuring an Flat Form 40 X 40 X 15 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 100 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz. Customize Your Experience with a Quote for your requirement of Telemecanique 40 x 40 x 15, 15 mm Length, PNP Proximity Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
