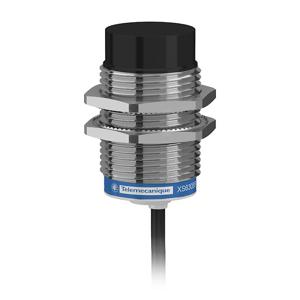

XS630B5NAL2: Telemecanique M30, 64 mm Length, Metal Inductive Sensors
Technical Specifications of Telemecanique M30, 64 mm Length, Metal Inductive Sensors XS630B5NAL2:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | NPN |
| Electrical Connection | Cable |
Telemecanique M30, 64 mm Length, Metal Inductive Sensors XS630B5NAL2 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS6 |
| Sensor design | Cylindrical M30 |
| Size | 64 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | NPN |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP65 conForming to IEC 60529, IP67 conForming to DIN 40050, IP69K |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 500 Hz DC |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 15.0000 MILLISECOND |
| Delay response | 0.6000 MILLISECOND |
| Marking | CE |
| Delay recovery | 1.4000 MILLISECOND |
| Product certifications | CSA E2 UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M30 X 1 5 |
Mail Us for Telemecanique M30, 64 mm Length, Metal Inductive Sensors XS630B5NAL2 at the lowest pricing. Technical Specs Summary of XS630B5NAL2 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO and NPN output, designed for efficient and reliable performance in automation tasks. Rated for 12...48 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP65 conForming to IEC 60529, IP67 conForming to DIN 40050,
IP69K, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 500 Hz DC. Take the First Step with a Quote for your requirement of Telemecanique M30, 64 mm Length, Metal Inductive Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
