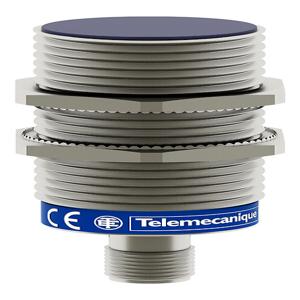

XS630B1MAU20: Telemecanique M30, 73 mm Length, 1 NO Proximity Sensors
Technical Specifications of Telemecanique M30, 73 mm Length, 1 NO Proximity Sensors XS630B1MAU20:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Male connector 1/2"20 UNF, 3 pins |
Telemecanique M30, 73 mm Length, 1 NO Proximity Sensors XS630B1MAU20 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS6 |
| Sensor design | Cylindrical M30 |
| Size | 73 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | - |
| Material | Metal |
| Electrical connection | Male connector 1/2"20 UNF, 3 pins |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Output circuit type | AC DC |
| Switching capacity in mA | 5...200 mA DC, 5...300 mA AC |
| IP degree of protection | IP67 conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 25 Hz AC, <= 500 Hz DC |
| Voltage drop | <5.5 V (closed) |
| Current consumption | - |
| Delay first up | 25.0000 MILLISECOND |
| Delay response | 0.5000 MILLISECOND |
| Marking | CE |
| Delay recovery | 2.0000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M30 X 1 5 |
Mail Us for Telemecanique M30, 73 mm Length, 1 NO Proximity Sensors XS630B1MAU20 at the lowest pricing. Technical Specs Summary of XS630B1MAU20 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...240 V AC/DC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA DC, 5...300 mA AC, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 25 Hz AC, <= 500 Hz DC. Take the First Step with a Quote for your requirement of Telemecanique M30, 73 mm Length, 1 NO Proximity Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
