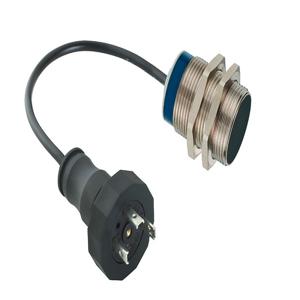

XS630B1MAL01C: Telemecanique M30, 62 mm Length, Metal Proximity Sensors
Technical Specifications of Telemecanique M30, 62 mm Length, Metal Proximity Sensors XS630B1MAL01C:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 2-wire |
| Discrete Output Type | - |
| Electrical Connection | Remote male connector DIN 43650A |
Telemecanique M30, 62 mm Length, Metal Proximity Sensors XS630B1MAL01C Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS6 |
| Sensor design | Cylindrical M30 |
| Size | 62 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | - |
| Material | Metal |
| Electrical connection | Remote male connector DIN 43650A |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Output circuit type | AC/DC |
| Switching capacity in mA | 5...200 mA DC, 5...300 mA AC |
| IP degree of protection | IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Cable composition | 2 x 0.34 mmΒ² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz DC, <= 25 Hz AC |
| Voltage drop | <5.5 V |
| Current consumption | - |
| Delay first up | 25.0000 MILLISECOND |
| Delay response | 0.5000 MILLISECOND |
| Marking | CE |
| Delay recovery | 2.0000 MILLISECOND |
| Product certifications | - |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M30 x 1.5 |
Give Us a Call for Telemecanique M30, 62 mm Length, Metal Proximity Sensors XS630B1MAL01C with budget-friendly prices. Technical Attributes are XS630B1MAL01C include Inductive proximity sensor, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...240 V AC/DC 50/60 Hz, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA DC, 5...300 mA AC, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz DC, <= 25 Hz AC. Navigate Your Needs with a Quote for your requirement of Telemecanique M30, 62 mm Length, Metal Proximity Sensors. We excel in offering more cost-effective and supportive solutions than other Competitors.
