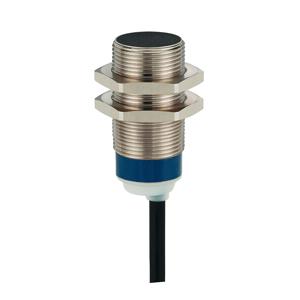

XS618B1NAL2: Telemecanique M18, 62 mm Length, 3 wire Proximity Sensors
Technical Specifications of Telemecanique M18, 62 mm Length, 3 wire Proximity Sensors XS618B1NAL2:
| Sensor Design | Cylindrical M18 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | NPN |
| Electrical Connection | Cable |
Telemecanique M18, 62 mm Length, 3 wire Proximity Sensors XS618B1NAL2 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS6 |
| Sensor design | Cylindrical M18 |
| Size | 62 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | NPN |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.7000 MILLISECOND |
| Product certifications | CSA E2 UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M18 X 1 |
Send Your Inquiry for Telemecanique M18, 62 mm Length, 3 wire Proximity Sensors XS618B1NAL2 with cost-effective solutions. Essential Technical Specs of XS618B1NAL2 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M18 design. This sensor operates with an Discrete Type of output signal, 1 NO and NPN output, designed for efficient and reliable performance in automation tasks. Rated for 12...48 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz. Capture the Best Deal with a Quote for your requirement of Telemecanique M18, 62 mm Length, 3 wire Proximity Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
