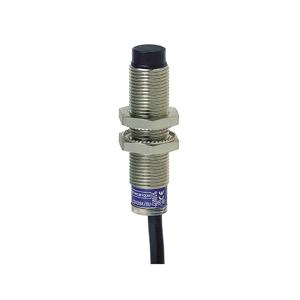

XS612B2PAL01M12: Telemecanique M12, 55 mm Length, Non flush mountable Inductive Sensors
Technical Specifications of Telemecanique M12, 55 mm Length, Non flush mountable Inductive Sensors XS612B2PAL01M12:
| Sensor Design | Cylindrical M12 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Remote male connector M12, 4 pins |
Telemecanique M12, 55 mm Length, Non flush mountable Inductive Sensors XS612B2PAL01M12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS6 |
| Sensor design | Cylindrical M12 |
| Size | 55 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Remote male connector M12, 4 pins |
| [Us] rated supply voltage | 12β¦24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| IP degree of protection | IP67 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Supply on and teach mode: 1 LED (green), output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.7000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M12 X 1 |
IndMALL Automation Dealing offers Telemecanique M12, 55 mm Length, Non flush mountable Inductive Sensors XS612B2PAL01M12 at unbeatable prices. The Main Technical Parameters of XS612B2PAL01M12 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M12 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12β¦24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 100 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz. Take the First Step with a Quote for your requirement of Telemecanique M12, 55 mm Length, Non flush mountable Inductive Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
