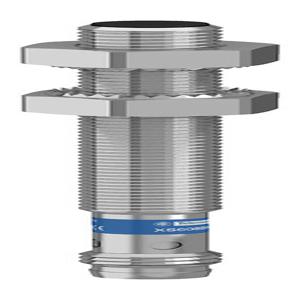

XS608B1PBM8: Telemecanique M8, 58 mm Length, 1 NC Inductive Sensors
Technical Specifications of Telemecanique M8, 58 mm Length, 1 NC Inductive Sensors XS608B1PBM8:
| Sensor Design | Cylindrical M8 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M8, 3 pins |
Telemecanique M8, 58 mm Length, 1 NC Inductive Sensors XS608B1PBM8 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS6 |
| Sensor design | Cylindrical M8 |
| Size | 58 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NC |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Stainless Steel |
| Electrical connection | Male connector M8, 3 pins |
| [Us] rated supply voltage | 12β¦24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529, IP65 conForming to IEC 60529 |
| Enclosure material | Stainless Steel 303 |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 2500 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.2000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.2000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M8 X 1 |
Ask for the Pricing of Telemecanique M8, 58 mm Length, 1 NC Inductive Sensors XS608B1PBM8 at unbeatable prices. Detailed Specifications of XS608B1PBM8 feature INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M8 design. This sensor operates with an Discrete Type of output signal, 1 NC and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12β¦24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP65 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Stainless Steel 303, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2500 Hz. Now's the Time to Secure a Quote for your requirement of Telemecanique M8, 58 mm Length, 1 NC Inductive Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
