During technical comparisons, TELEMECANIQUESENSORS-XS530B1DAL5TF appears alongside Telemecanique Limit Switch, Telemecanique Telemecaniquesensors Xs612B1Mal2 and Telemecanique Safety Interlock Switches Accessories so engineers assess signal types, ingress protection, and ambient tolerances accurately.

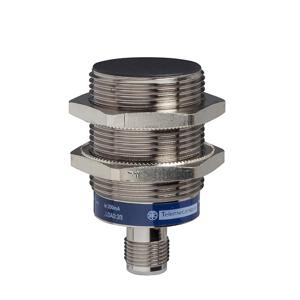

XS530B1DAL5TF: Telemecanique XS5 Series, M30, 54 mm Length Proximity Sensors
Technical Specifications of Telemecanique XS5 Series, M30, 54 mm Length Proximity Sensors XS530B1DAL5TF:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 2-wire |
| Discrete Output Type | - |
| Electrical Connection | Cable |
Telemecanique XS5 Series, M30, 54 mm Length Proximity Sensors XS530B1DAL5TF Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS5 |
| Sensor design | Cylindrical M30 |
| Size | 54 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | - |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...48 V DC |
| Output circuit type | DC |
| Switching capacity in mA | 1.5...100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Cable composition | 2 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 2000 Hz |
| Voltage drop | <4 V (closed) |
| Current consumption | - |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.3000 MILLISECOND |
| Product certifications | UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M30 x 1.5 |
Mail Us for Telemecanique XS5 Series, M30, 54 mm Length Proximity Sensors XS530B1DAL5TF at the lowest pricing. Technical Specs Summary of XS530B1DAL5TF are Inductive proximity sensor, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 12...48 V DC, ensuring durability in varying power conditions. With a switching capacity up to 1.5...100 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2000 Hz. Take the First Step with a Quote for your requirement of Telemecanique XS5 Series, M30, 54 mm Length Proximity Sensors. Choose us for unparalleled pricing and support over other Dealers & Distributors.
