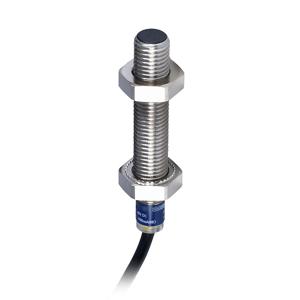

XS508B1DAL2TF: Telemecanique M8, 51 mm Length, Fixed Proximity Sensors
Technical Specifications of Telemecanique M8, 51 mm Length, Fixed Proximity Sensors XS508B1DAL2TF:
| Sensor Design | Cylindrical M8 |
| Wiring Technique | 2-wire |
| Discrete Output Type | - |
| Electrical Connection | Cable |
Telemecanique M8, 51 mm Length, Fixed Proximity Sensors XS508B1DAL2TF Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS5 |
| Sensor design | Cylindrical M8 |
| Size | 51 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2-wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | - |
| Material | Stainless Steel |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...48 V DC |
| Output circuit type | DC |
| Switching capacity in mA | 1.5...100 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Stainless Steel 303 |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Cable composition | 2 x 0.11 mmΒ² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 4000 Hz |
| Voltage drop | <4 V (closed) |
| Current consumption | - |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.2000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.2000 MILLISECOND |
| Product certifications | UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M8 x 1 |
Get A Quote for Telemecanique M8, 51 mm Length, Fixed Proximity Sensors XS508B1DAL2TF at unbeatable prices. Detailed Specifications of XS508B1DAL2TF feature Inductive proximity sensor, featuring an Cylindrical M8 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 12...48 V DC, ensuring durability in varying power conditions. With a switching capacity up to 1.5...100 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Stainless Steel 303, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 4000 Hz. Match Your Needs with a Quote for your requirement of Telemecanique M8, 51 mm Length, Fixed Proximity Sensors. Our pricing and support are unrivaled, especially when compared to other Distributors.
