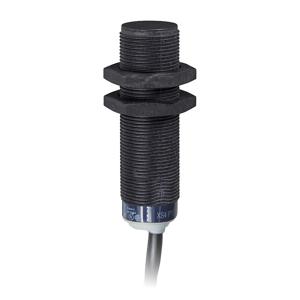

XS4P18PA340L1: Telemecanique M18, 36 mm Length, Plastic Proximity Sensors
Technical Specifications of Telemecanique M18, 36 mm Length, Plastic Proximity Sensors XS4P18PA340L1:
| Sensor Design | Cylindrical M18 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique M18, 36 mm Length, Plastic Proximity Sensors XS4P18PA340L1 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS4 |
| Sensor design | Cylindrical M18 |
| Size | 36 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conForming to IEC 60529 |
| Enclosure material | PPS |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 2000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.1500 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.3500 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M18 X 1 |
Ask for the Pricing of Telemecanique M18, 36 mm Length, Plastic Proximity Sensors XS4P18PA340L1 at unbeatable prices. Detailed Specifications of XS4P18PA340L1 features INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M18 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PPS, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2000 Hz. Now's the Time to Secure a Quote for your requirement of Telemecanique M18, 36 mm Length, Plastic Proximity Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
