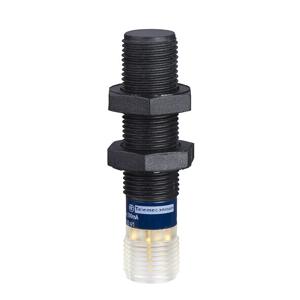

XS4P12PC410D: Telemecanique M12, 48 mm Length, Fixed Proximity Sensors
Technical Specifications of Telemecanique M12, 48 mm Length, Fixed Proximity Sensors XS4P12PC410D:
| Sensor Design | Cylindrical M12 |
| Wiring Technique | 4-wire |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M12, 4 pins |
Telemecanique M12, 48 mm Length, Fixed Proximity Sensors XS4P12PC410D Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS4 |
| Sensor design | Cylindrical M12 |
| Size | 48 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| Discrete output function | 1 NO + 1 NC |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | PPS |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 5000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | 0...10 mA no-load |
| Delay first up | 5.0000 MILLISECOND |
| Delay response | 0.1000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.1000 MILLISECOND |
| Product certifications | UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M12 x 1 |
Get A Quote for Telemecanique M12, 48 mm Length, Fixed Proximity Sensors XS4P12PC410D at the best price. Here are the brief Technical Specifications of XS4P12PC410D are Inductive proximity sensor, featuring an Cylindrical M12 design. This sensor operates with an Discrete Type of output signal, 1 NO + 1 NC and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PPS, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 5000 Hz. It's Time to get a Quote for your requirement of Telemecanique M12, 48 mm Length, Fixed Proximity Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
