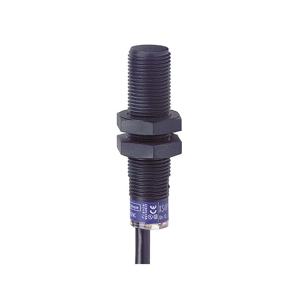

XS4P12AB120: Telemecanique M12, 54 mm Length, Non flush mountable Inductive Sensors
Technical Specifications of Telemecanique M12, 54 mm Length, Non flush mountable Inductive Sensors XS4P12AB120:
| Sensor Design | Cylindrical M12 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Cable |
Telemecanique M12, 54 mm Length, Non flush mountable Inductive Sensors XS4P12AB120 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS4 |
| Sensor design | Cylindrical M12 |
| Size | 54 mm |
| Body type | Fixed |
| Type of output signal | ANALOGUE |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NC |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | - |
| Material | Plastic |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC |
| Output circuit type | DC |
| Switching capacity in mA | - |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | PBT |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | - |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | - |
| Wire insulation material | PVC |
| Switching frequency | <= 1500 Hz |
| Voltage drop | - |
| Current consumption | 4 mA no-load |
| Delay first up | - |
| Delay response | - |
| Marking | CE |
| Delay recovery | - |
| Product certifications | CSA UL |
| Vibration resistance | - |
| Shock resistance | - |
| Thread type | M12 X 1 |
Obtain a Quote for Telemecanique M12, 54 mm Length, Non flush mountable Inductive Sensors XS4P12AB120 with exclusive offers. Core System Specifications of XS4P12AB120 feature INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M12 design. This sensor operates with an ANALOGUE Type of output signal, 1 NC output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC, ensuring durability in varying power conditions, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PBT, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1500 Hz. Initiate Your Journey with a Quote for your requirement of Telemecanique M12, 54 mm Length, Non flush mountable Inductive Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
