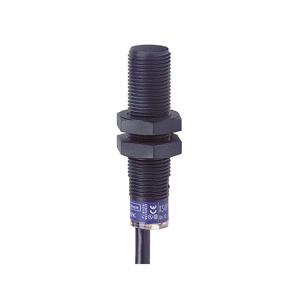

XS4P08PA340S: Telemecanique M8, 42 mm Length, 3 wire Inductive Sensors
Technical Specifications of Telemecanique M8, 42 mm Length, 3 wire Inductive Sensors XS4P08PA340S:
| Sensor Design | Cylindrical M8 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M8, 3 pins |
Telemecanique M8, 42 mm Length, 3 wire Inductive Sensors XS4P08PA340S Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS4 |
| Sensor design | Cylindrical M8 |
| Size | 42 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | Male connector M8, 3 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA DC with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | PPS |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 5000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.1000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.1000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M8 X 1 |
Give Us a Call for Telemecanique M8, 42 mm Length, 3 wire Inductive Sensors XS4P08PA340S with budget-friendly prices. Technical Attributes are XS4P08PA340S include INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M8 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA DC with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable PPS, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 5000 Hz. Navigate Your Needs with a Quote for your requirement of Telemecanique M8, 42 mm Length, 3 wire Inductive Sensors. We excel in offering more cost-effective and supportive solutions than other Competitors.
