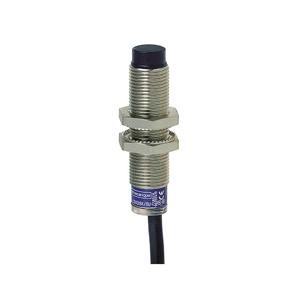

XS2M12KP340 - Telemecanique 55 mm Length, Fixed Inductive Sensors
Technical Specifications of Telemecanique 55 mm Length, Fixed Inductive Sensors XS2M12KP340 :
| Brand | Telemecanique |
| Product Type | Proximity Sensor |
| Model Number | XS2M12KP340 |
Telemecanique 55 mm Length, Fixed Inductive Sensors XS2M12KP340 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General Purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M12 |
| Size | 55 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 4 Wire |
| Discrete output function | 1 NO OR 1 NC Programmable |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP & NPN |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 4 X 0 22 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 5000 Hz |
| Voltage drop | <2.6 V (closed) |
| Current consumption | 0...10 mA no-load |
| Delay first up | 5.0000 MILLISECOND |
| Delay response | 0.1000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.1000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M12 X 1 |
Give Us a Call for Telemecanique 55 mm Length, Fixed Inductive Sensors XS2M12KP340 at the lowest pricing. In-depth Technical Analysis of XS2M12KP340 feature Inductive proximity sensor, featuring an Cylindrical M12 design. This sensor operates with an Discrete Type of output signal, 1 NO OR 1 NC Programmable and PNP & NPN output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 5000 Hz. Elevate Your Project with a Quote for your requirement of Telemecanique 55 mm Length, Fixed Inductive Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
