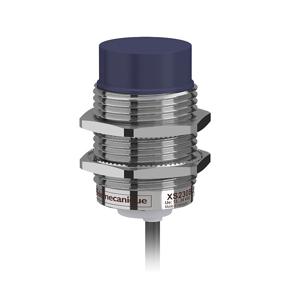

XS230BLPAL2: Telemecanique M30, 57 mm Length, PNP Proximity Sensors
Technical Specifications of Telemecanique M30, 57 mm Length, PNP Proximity Sensors XS230BLPAL2:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique M30, 57 mm Length, PNP Proximity Sensors XS230BLPAL2 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS2 |
| Sensor design | Cylindrical M30 |
| Size | 57 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 14 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 300 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 15.0000 MILLISECOND |
| Delay response | 0.2000 MILLISECOND |
| Marking | CE |
| Delay recovery | 1.4000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | - |
Send Your Inquiry for Telemecanique M30, 57 mm Length, PNP Proximity Sensors XS230BLPAL2 with cost-effective solutions. Essential Technical Specs of XS230BLPAL2 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 300 Hz. Capture the Best Deal with a Quote for your requirement of Telemecanique M30, 57 mm Length, PNP Proximity Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
