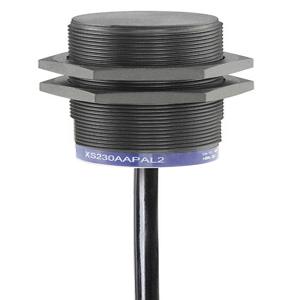

XS230AANAL2: Telemecanique M30, 60 mm Length, NPN Inductive Sensors
Technical Specifications of Telemecanique M30, 60 mm Length, NPN Inductive Sensors XS230AANAL2:
| Sensor Design | Cylindrical M30 |
| Wiring Technique | 3-wire |
| Discrete Output Type | NPN |
| Electrical Connection | Cable |
Telemecanique M30, 60 mm Length, NPN Inductive Sensors XS230AANAL2 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M30 |
| Size | 60 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | NPN |
| Material | Plastic |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...48 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | PPS |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1...15 % of Sr |
| Cable composition | 3 x 0.34 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 500 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.6000 MILLISECOND |
| Marking | CE |
| Delay recovery | 1.4000 MILLISECOND |
| Product certifications | UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M30 x 1.5 |
Call us for Telemecanique M30, 60 mm Length, NPN Inductive Sensors XS230AANAL2 at the lowest pricing. In-depth Technical Analysis of XS230AANAL2 feature Inductive proximity sensor, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 12...48 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable PPS, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 500 Hz. Capture the Best Deal with a Quote for your requirement of Telemecanique M30, 60 mm Length, NPN Inductive Sensors. Our promise: More affordable pricing and more personalized support than other Dealers.
