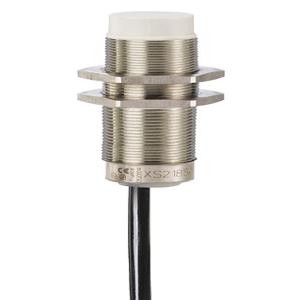

XS218SAPAL2: Telemecanique M18, 60 mm Length, M18 Thread Proximity Sensors
Technical Specifications of Telemecanique M18, 60 mm Length, M18 Thread Proximity Sensors XS218SAPAL2:
| Sensor Design | Cylindrical M18 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique M18, 60 mm Length, M18 Thread Proximity Sensors XS218SAPAL2 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS2 |
| Sensor design | Cylindrical M18 |
| Size | 60 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | PNP |
| Material | Stainless Steel |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | Stainless Steel 316 L |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.3000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.7000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M18 X 1 |
Call us for Telemecanique M18, 60 mm Length, M18 Thread Proximity Sensors XS218SAPAL2 at the lowest pricing. In-depth Technical Analysis of XS218SAPAL2 feature INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M18 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable Stainless Steel 316 L, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz. Capture the Best Deal with a Quote for your requirement of Telemecanique M18, 60 mm Length, M18 Thread Proximity Sensors. Our promise: More affordable pricing and more personalized support than other Dealers.
