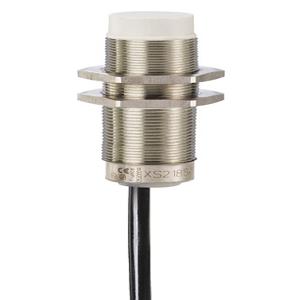

XS218SAMAL5: Telemecanique M18, 60 mm Length, Stainless steel Proximity Sensors
Technical Specifications of Telemecanique M18, 60 mm Length, Stainless steel Proximity Sensors XS218SAMAL5:
| Sensor Design | Cylindrical M18 |
| Wiring Technique | 2 Wire |
| Discrete Output Type | - |
| Electrical Connection | Cable |
Telemecanique M18, 60 mm Length, Stainless steel Proximity Sensors XS218SAMAL5 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | TE INDTIVE PROX SSRS XS |
| Series name | APPLICATION |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS2 |
| Sensor design | Cylindrical M18 |
| Size | 60 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 2 Wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Non Flush Mountable |
| Discrete output type | - |
| Material | Stainless Steel |
| Electrical connection | Cable |
| [Us] rated supply voltage | 24...240 V AC 50/60 Hz, 24...240 V DC |
| Output circuit type | AC DC |
| Switching capacity in mA | 5...200 mA DC, 5...300 mA AC |
| IP degree of protection | IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050 |
| Enclosure material | Stainless Steel 316 L |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 2 X 0 34 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 1000 Hz DC, <= 25 Hz AC |
| Voltage drop | <5.5 V (closed) |
| Current consumption | - |
| Delay first up | 30.0000 MILLISECOND |
| Delay response | 0.5000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.5000 MILLISECOND |
| Product certifications | CCC CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M18 X 1 |
Get A Quote for Telemecanique M18, 60 mm Length, Stainless steel Proximity Sensors XS218SAMAL5 at unbeatable prices. Detailed Specifications of XS218SAMAL5 feature INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M18 design. This sensor operates with an Discrete Type of output signal, 1 NO output, designed for efficient and reliable performance in automation tasks. Rated for 24...240 V AC 50/60 Hz,
24...240 V DC, ensuring durability in varying power conditions. With a switching capacity up to 5...200 mA DC, 5...300 mA AC, it promises safe and stable operation. Its IP68 double insulation conForming to IEC 60529, IP69K conForming to DIN 40050, IP degree of protection makes it suitable for challenging environments. Built from durable Stainless Steel 316 L, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz DC, <= 25 Hz AC. Match Your Needs with a Quote for your requirement of Telemecanique M18, 60 mm Length, Stainless steel Proximity Sensors. Our pricing and support are unrivaled, especially when compared to other Distributors.
