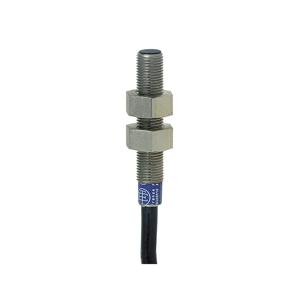

XS1N05PB311: Telemecanique M5, 28 mm Length, Stainless steel Inductive Sensors
Technical Specifications of Telemecanique M5, 28 mm Length, Stainless steel Inductive Sensors XS1N05PB311:
| Sensor Design | Cylindrical M5 |
| Wiring Technique | 3-wire |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique M5, 28 mm Length, Stainless steel Inductive Sensors XS1N05PB311 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M5 |
| Size | 28 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NC |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Stainless Steel |
| Electrical connection | Cable |
| [Us] rated supply voltage | 5...24 V DC |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Stainless Steel 303 |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | - |
| Cable composition | 3 x 0.11 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 5000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | 0...10 mA no-load |
| Delay first up | 5.0000 MILLISECOND |
| Delay response | 1.0000 MILLISECOND |
| Marking | CE |
| Delay recovery | 1.0000 MILLISECOND |
| Product certifications | UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M5 x 0.5 |
Get A Quote for Telemecanique M5, 28 mm Length, Stainless steel Inductive Sensors XS1N05PB311 at the best price. Here are the brief Technical Specifications of XS1N05PB311 are Inductive proximity sensor, featuring an Cylindrical M5 design. This sensor operates with an Discrete Type of output signal, 1 NC and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 5...24 V DC, ensuring durability in varying power conditions. With a switching capacity up to <= 100 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Stainless Steel 303, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 5000 Hz. It's Time to get a Quote for your requirement of Telemecanique M5, 28 mm Length, Stainless steel Inductive Sensors. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
