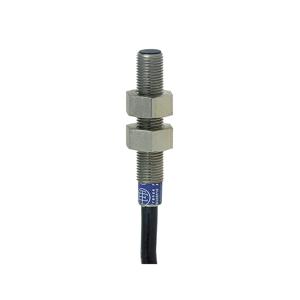

XS1N05PA310S: Telemecanique XS1 Series, M5 Dia Proximity Sensors
Technical Specifications of Telemecanique XS1 Series, M5 Dia Proximity Sensors XS1N05PA310S:
| Sensor Design | Cylindrical M5 |
| Wiring Technique | 3-wire |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M8, 3 pins |
Telemecanique XS1 Series, M5 Dia Proximity Sensors XS1N05PA310S Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M5 |
| Size | 42 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Male connector M8, 3 pins |
| [Us] rated supply voltage | 5...24 V DC |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | - |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 5000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 5.0000 MILLISECOND |
| Delay response | 1.0000 MILLISECOND |
| Marking | CE |
| Delay recovery | 1.0000 MILLISECOND |
| Product certifications | UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M5 x 0.5 |
Mail Us for Telemecanique XS1 Series, M5 Dia Proximity Sensors XS1N05PA310S at unbeatable prices. Detailed Specifications of XS1N05PA310S feature Inductive proximity sensor, featuring an Cylindrical M5 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 5...24 V DC, ensuring durability in varying power conditions. With a switching capacity up to <= 100 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 5000 Hz. Elevate Your Project with a Quote for your requirement of Telemecanique XS1 Series, M5 Dia Proximity Sensors. Count on us for more economical pricing and more reliable support than other Traders & Suppliers.
