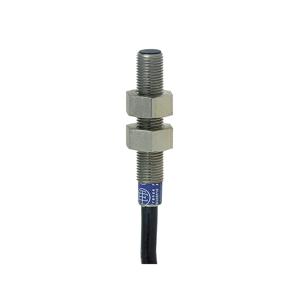

XS1N05PA310: Telemecanique M5, 28 mm Length, Flush mountable Inductive Sensors
Technical Specifications of Telemecanique M5, 28 mm Length, Flush mountable Inductive Sensors XS1N05PA310:
| Sensor Design | Cylindrical M5 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique M5, 28 mm Length, Flush mountable Inductive Sensors XS1N05PA310 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS1 |
| Sensor design | Cylindrical M5 |
| Size | 28 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 5...24 V DC |
| Output circuit type | DC |
| Switching capacity in mA | <= 100 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | - |
| Cable composition | 3 X 0 11 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 5000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 5.0000 MILLISECOND |
| Delay response | 1.0000 MILLISECOND |
| Marking | CE |
| Delay recovery | 1.0000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M5 X 0 5 |
Get A Quote for Telemecanique M5, 28 mm Length, Flush mountable Inductive Sensors XS1N05PA310 at unbeatable prices. Detailed Specifications of XS1N05PA310 feature INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M5 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 5...24 V DC, ensuring durability in varying power conditions. With a switching capacity up to <= 100 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 5000 Hz. Match Your Needs with a Quote for your requirement of Telemecanique M5, 28 mm Length, Flush mountable Inductive Sensors. Our pricing and support are unrivaled, especially when compared to other Distributors.
