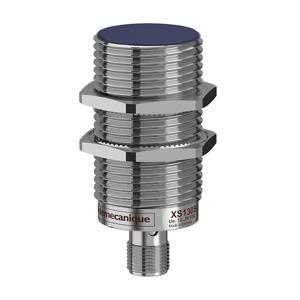

XS130BHPAM12 - Telemecanique M30, 68 mm Length, Fixed Inductive Sensors
Technical Specifications of Telemecanique M30, 68 mm Length, Fixed Inductive Sensors XS130BHPAM12 :
| Brand | Telemecanique |
| Product Type | Proximity Sensor |
| Model Number | XS130BHPAM12 |
Telemecanique M30, 68 mm Length, Fixed Inductive Sensors XS130BHPAM12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General Purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS1 |
| Sensor design | Cylindrical M30 |
| Size | 68 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PBT |
| Differential travel | 1 15 PT OF SR |
| Status LED | Output state: 1 LED (yellow) |
| Switching frequency | <= 200 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 15.0000 MILLISECOND |
| Delay response | 0.6000 MILLISECOND |
| Marking | CE |
| Delay recovery | 4.0000 MILLISECOND |
| Product certifications | CSA UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
Obtain a Quote for Telemecanique M30, 68 mm Length, Fixed Inductive Sensors XS130BHPAM12 with exclusive offers. Core System Specifications of XS130BHPAM12 feature Inductive proximity sensor, featuring an Cylindrical M30 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 200 Hz. Initiate Your Journey with a Quote for your requirement of Telemecanique M30, 68 mm Length, Fixed Inductive Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Suppliers & Traders.
