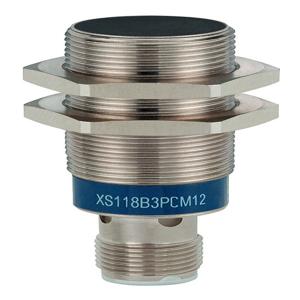

XS118B3PCM12: Telemecanique M18, 50 mm Length Proximity Sensors
Technical Specifications of Telemecanique M18, 50 mm Length Proximity Sensors XS118B3PCM12:
| Sensor Design | Cylindrical M18 |
| Wiring Technique | 4 Wire |
| Discrete Output Type | PNP |
| Electrical Connection | Male connector M12, 4 pins |
Telemecanique M18, 50 mm Length Proximity Sensors XS118B3PCM12 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS1 |
| Sensor design | Cylindrical M18 |
| Size | 50 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 4 Wire |
| Discrete output function | 1 NO + 1 NC |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Male connector M12, 4 pins |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP69K conForming to DIN 40050, IP65 conForming to IEC 60529, IP67 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | - |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | - |
| Switching frequency | <= 1000 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | 0...10 mA no-load |
| Delay first up | 5.0000 MILLISECOND |
| Delay response | 0.1500 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.3500 MILLISECOND |
| Product certifications | CSA E2 TUV UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M18 X 1 |
Mail Us for your needs in Telemecanique M18, 50 mm Length Proximity Sensors XS118B3PCM12 with budget-friendly prices. The Main Technical Parameters of XS118B3PCM12 include INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M18 design. This sensor operates with an Discrete Type of output signal, 1 NO + 1 NC and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP69K conForming to DIN 40050, IP65 conForming to IEC 60529,
IP67, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 1000 Hz. Customize Your Experience with a Quote for your requirement of Telemecanique M18, 50 mm Length Proximity Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
