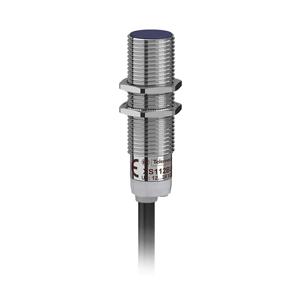

XS112B3PAL5: Telemecanique M12 Thread Inductive Sensors
Technical Specifications of Telemecanique M12 Thread Inductive Sensors XS112B3PAL5:
| Sensor Design | Cylindrical M12 |
| Wiring Technique | 3 WIRE |
| Discrete Output Type | PNP |
| Electrical Connection | Cable |
Telemecanique M12 Thread Inductive Sensors XS112B3PAL5 Technical Specifications
| Specification | Value |
|---|---|
| Range of product | - |
| Series name | GENERAL PURPOSE |
| Sensor type | INDUCTIVE PROXIMITY SENSOR |
| Sensor name | XS1 |
| Sensor design | Cylindrical M12 |
| Size | 37 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3 WIRE |
| Discrete output function | 1 NO |
| Detector Flush mounting acceptance | Flush Mountable |
| Discrete output type | PNP |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12...24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP65 conForming to IEC 60529, IP67 conForming to IEC 60529 |
| Enclosure material | Nickel Plated Brass |
| Detection face | Frontal |
| Front material | PPS |
| Differential travel | 1 15 PT OF SR |
| Cable composition | 3 X 0 34 mm2 |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 2500 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | <= 10 mA no-load |
| Delay first up | 10.0000 MILLISECOND |
| Delay response | 0.2000 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.2000 MILLISECOND |
| Product certifications | CSA E2 UL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conForming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conForming to IEC 60068-2-27 |
| Thread type | M12 X 1 |
Send Your Inquiry for Telemecanique M12 Thread Inductive Sensors XS112B3PAL5 with cost-effective solutions. Essential Technical Specs of XS112B3PAL5 are INDUCTIVE PROXIMITY SENSOR, featuring an Cylindrical M12 design. This sensor operates with an Discrete Type of output signal, 1 NO and PNP output, designed for efficient and reliable performance in automation tasks. Rated for 12...24 V DC with reverse polarity protection, ensuring durability in varying power conditions. With a switching capacity up to <= 200 mA with overload and short-circuit protection, it promises safe and stable operation. Its IP65 conForming to IEC 60529, IP67 conForming to IEC 60529, IP degree of protection makes it suitable for challenging environments. Built from durable Nickel Plated Brass, this sensor is designed with an Frontal detection face and can operate at a switching frequency of up to <= 2500 Hz. Capture the Best Deal with a Quote for your requirement of Telemecanique M12 Thread Inductive Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
